TL;DR
The article outlines a solution for processing complex, binary data using Delta Live Tables (DLT) and mapInPandas within the Databricks ecosystem. Traditional ETL pipelines struggled with the unique challenges of mixed-format metadata and asynchronous data streams. By leveraging DLT's declarative ETL pipelines and mapInPandas for efficient Python-native transformations, we transformed binary data into structured, analytics-ready tables. This article covers real-time ingestion using Autoloader, scalable data parsing, and event-driven orchestration. This approach the adaptability for diverse industries like healthcare and media analytics, showcasing a scalable and maintainable data engineering framework.
The Road Less Traveled in Data Engineering
Every trip tells a story, and for engines, their logs are no exception. Each trip generates logs that tell complex and valuable stories. These logs capture performance metrics, metadata, an more—but in a format that challenges traditional data processing methods.
The challenge? Transforming this data at scale for real-time insights without breaking under the weight of its complexity.
The Challenge of the Unusual
Handling these logger files brought us face-to-face with a technical conundrum:
- Non-tabular data structure: The data wasn’t formatted neatly in rows and columns. Instead, metadata and logs coexisted in an interwoven text format.
- Scale and streaming requirements: With engines generating continuous logs, batch processing wasn’t feasible. A scalable, low-latency streaming solution was imperative.
- Technical concerns: Precision in processing was non-negotiable, isn't it always?
Traditional ETL pipelines struggled with these demands, particularly memory efficiency and performance when handling streaming and non-standard data formats. We required a scalable, innovative solution that transcended conventional methods.
A Breakthrough with Delta Live Tables and mapInPandas
The journey to a solution started with asking the right question: how could we process this data without letting its structure overwhelm our pipeline? The answer came in the form of Delta Live Tables (DLT) and mapInPandas .
- The Limitations of PySpark UDFs: While useful, they were computationally expensive for our needs and lacked the flexibility to handle the logger’s mixed-format data effectively.
- mapInPandas for Binary Decoding: By leveraging mapInPandas , we could apply Python-native libraries like struct or bitstring to decode each binary payload. Each sensor packet could be broken down into its constituent fields—floats for chemical concentrations, 16-bit integers for pH, 32-bit integers for turbidity, and so forth—without straining cluster memory or performance.
- DLT Orchestration: With its declarative pipeline management, DLT provided the backbone for organizing ingestion, transformation, and delivery into scalable workflows.
- Event Grid and Autoloader: New binary data files or streams were processed in near-real-time. By integrating event notifications, we ensured that as soon as a binary packet file landed in cloud storage, the Autoloader and DLT pipeline kicked off the decoding and structuring process automatically..

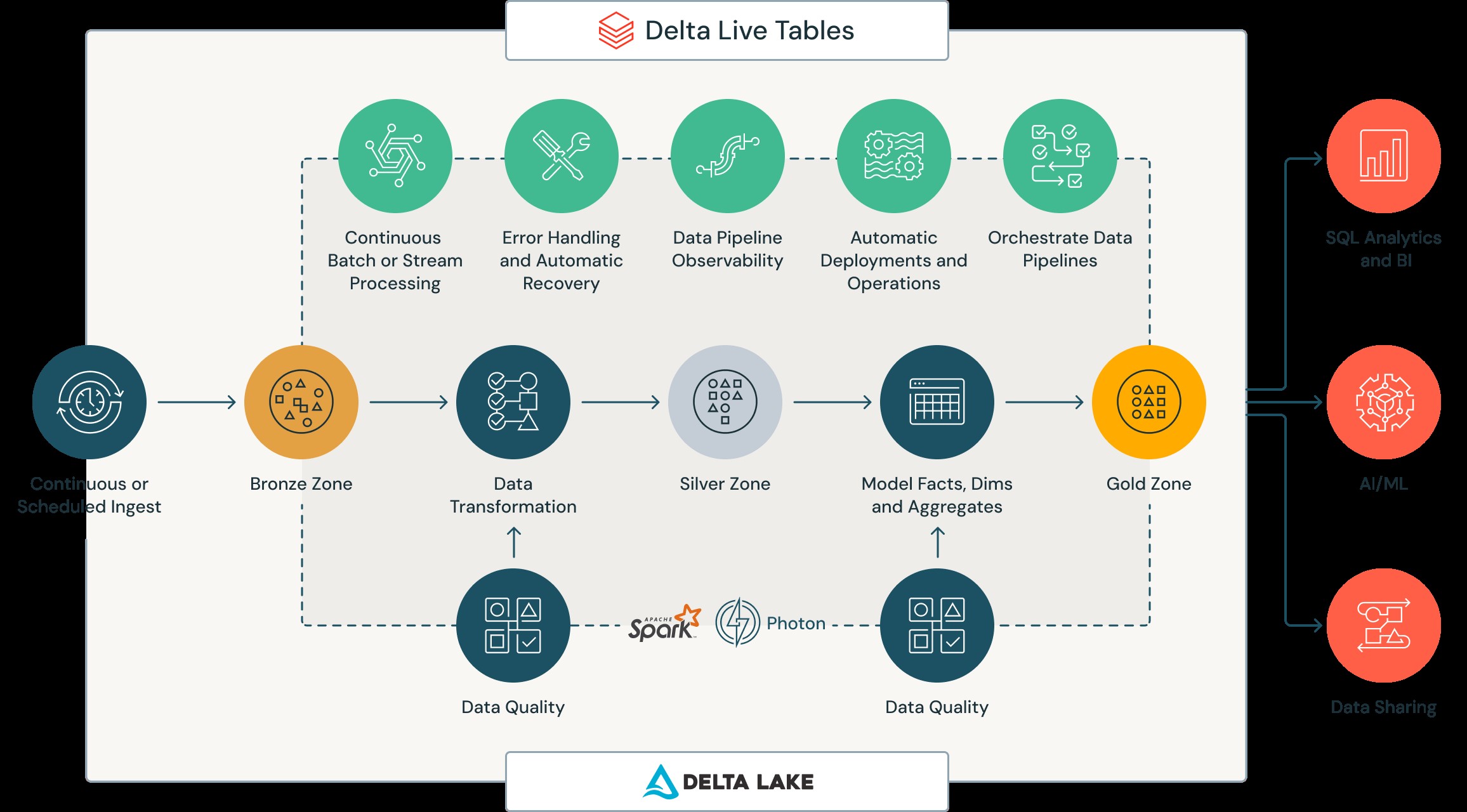

Understanding Delta Live Tables
Delta Live Tables (DLT) is an ETL framework designed to simplify the development and operation of data pipelines within Databricks. It allows data engineers and analysts to focus on defining business logic and desired data transformations while DLT automatically handles the complexity of execution, scaling, monitoring, and error management.
Key Principles of DLT:
- Declarative Approach: Instead of providing step-by-step imperative instructions, DLT users simply define the desired outcome of data transformations. The user can choose between PySpark and Spark SQL. The system then executes the necessary operations to achieve this goal efficiently and effectively.
- Automatic Complexity Management: DLT supports auto-scaling, error handling, retry attempts, and ensures data consistency.
- Real-Time Observability: Integrated event logs and data quality tools enable monitoring of pipeline health and performance in real time.
- Support for Data Streams: DLT enables the creation of streaming pipelines capable of processing data incrementally and continuously with low latency. It’s also worth noting that DLT can also be utilized for batch processing. Data will still be processed incrementally but on fixed intervals instead of continuously.

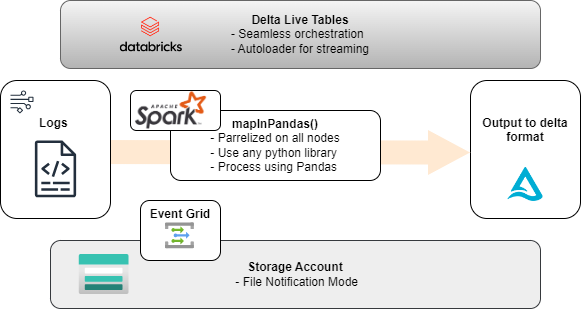

Unpacking the Logger Data
Our goal is to convert incoming binary packets into structured Delta tables suitable for downstream analytics:
- Tabular data for downstream analytics
- Real-Time processing & Scalability
- Understandability
We set up a DLT pipeline to stream the logger files from a cloud storage location. Using Databricks’ Auto Loader feature and its file notification mode, we ensured seamless ingestion of incoming logs.
From Logs to Insights: Processing the Logger Data
Our goal is to convert incoming binary packets into structured Delta tables suitable for downstream analytics
- Before: A raw binary stream with no inherent delimiters or human-readable labels. Sensor stations embed metadata (like timestamps, station IDs) and measurements (chemical concentrations, pH values, turbidity, etc.) at fixed byte offsets.
- After: A set of Delta tables containing well-defined columns:
- Metadata Table: Station IDs, timestamps, sensor calibration details.
- Data Table: Time-series measurements of each metric (pH, chemical concentration, turbidity), aligned with their associated timestamps.
Data Format Challenges
Each binary payload requires custom parsing logic:
- Fixed-Width Binary Segments: For example, the first 8 bytes might represent a 64-bit UNIX timestamp, the next 4 bytes a float for dissolved oxygen, followed by a 2-byte integer for pH, and so forth.
- Scaling and Endianness: Certain values may require scaling (e.g., converting raw integers to floating-point readings), and careful handling of byte order (endianness) is crucial.
- Error Handling and Checksums: Some packets may include checksums or sequence numbers to verify integrity. Corrupted or partial data requires special handling, such as discarding the packet or logging an error.
A snippet of the conceptual binary decoding workflow might look like this:
- Raw Bytes (Hex): 0x00 0x00 0x01 0x7A ... 0x2A 0xD3
- Interpreted Fields:
- Bytes [0–7]: 64-bit timestamp
- Bytes [8–11]: 32-bit float (turbidity)
- Bytes [12–13]: 16-bit integer (pH * 100)
- Bytes [14–17]: 32-bit float (chemical concentration)
Building the Solution
We structured the DLT pipeline to yield two core outputs:
- Metadata Table: Captures station identifiers, calibration info, and data quality flags.
- Data Table: Stores time-series measurements aligned with timestamps.
1. Ingestion with Autoloader
- Binary files are continuously streamed from a cloud storage location.
- On file arrival, event notifications trigger immediate ingestion into our pipeline.
2. Efficient Parsing with mapInPandas :
- mapInPandas applies Python-based parsing functions to each incoming binary chunk.
- Using struct.unpack() , we decode floats, ints, and doubles, reconstructing a meaningful row of sensor readings from raw bytes.
- Irregularities—like corrupted packets—are either cleaned or flagged.
3. Custom Logic for Clean Data:
- Extracted timestamps and station metadata become structured key-value pairs.
- Each packet yields a set of readings appended to a time-series table, enabling real-time analytics on contamination levels.

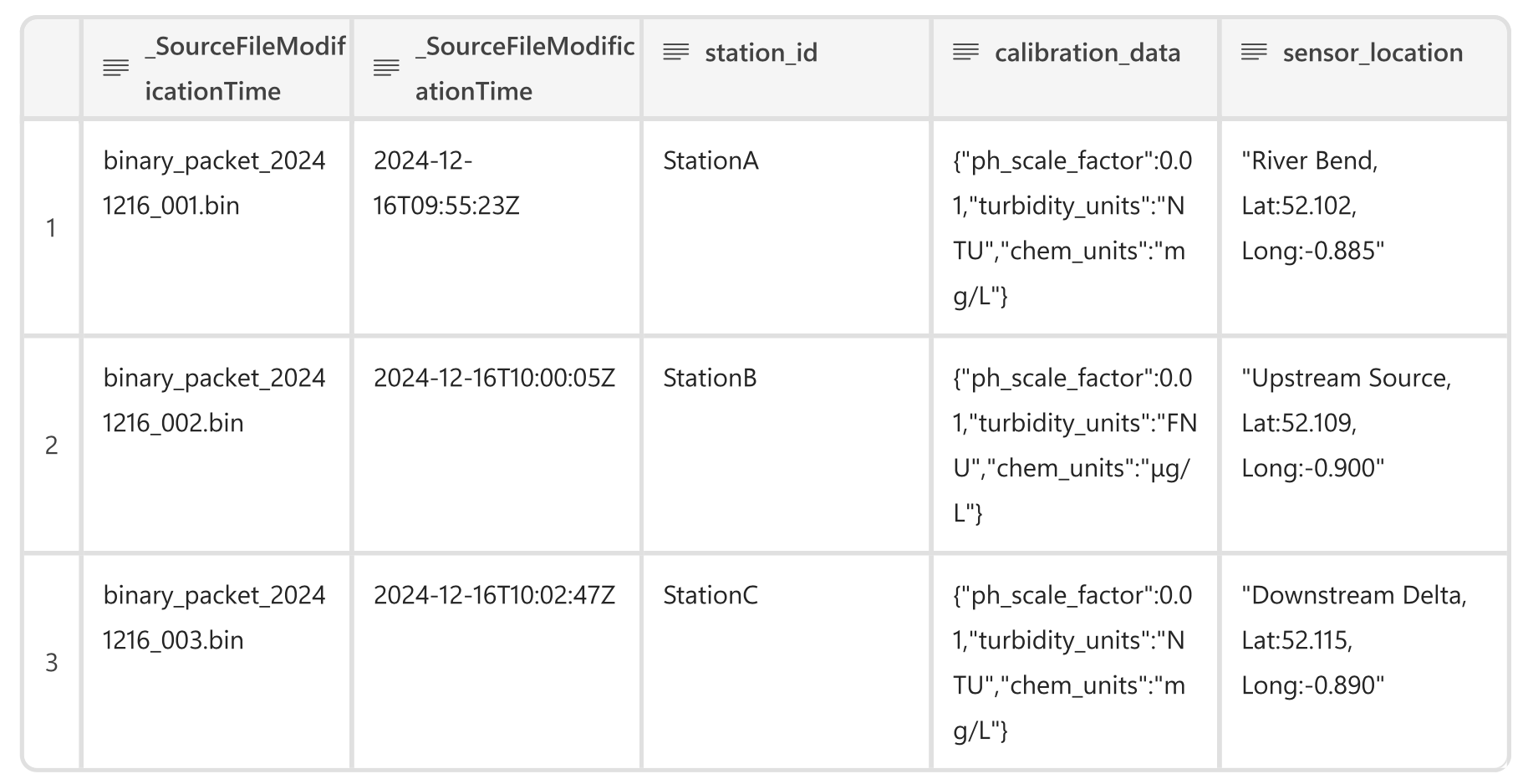

Output metadata table:

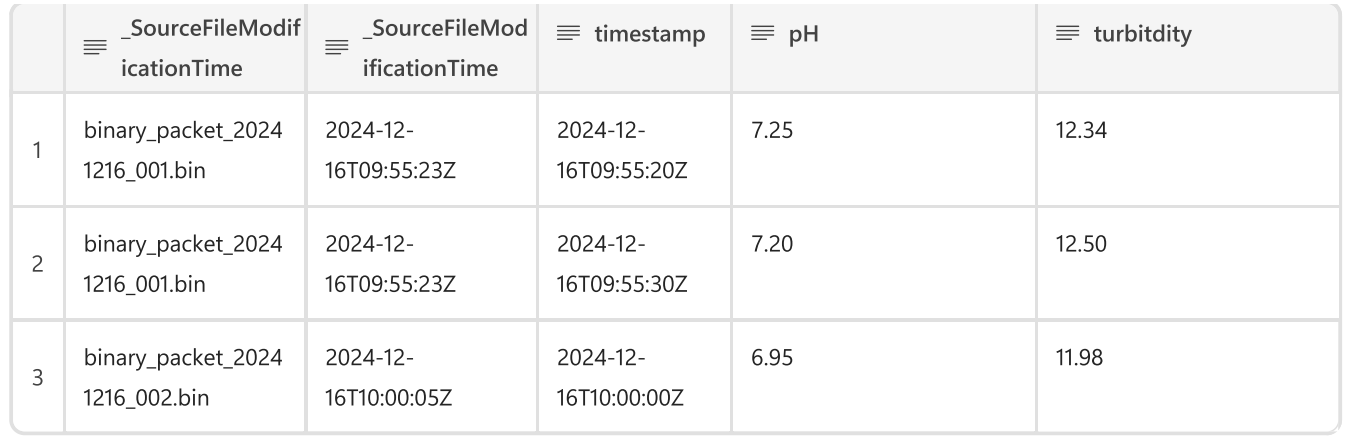

Output data table:

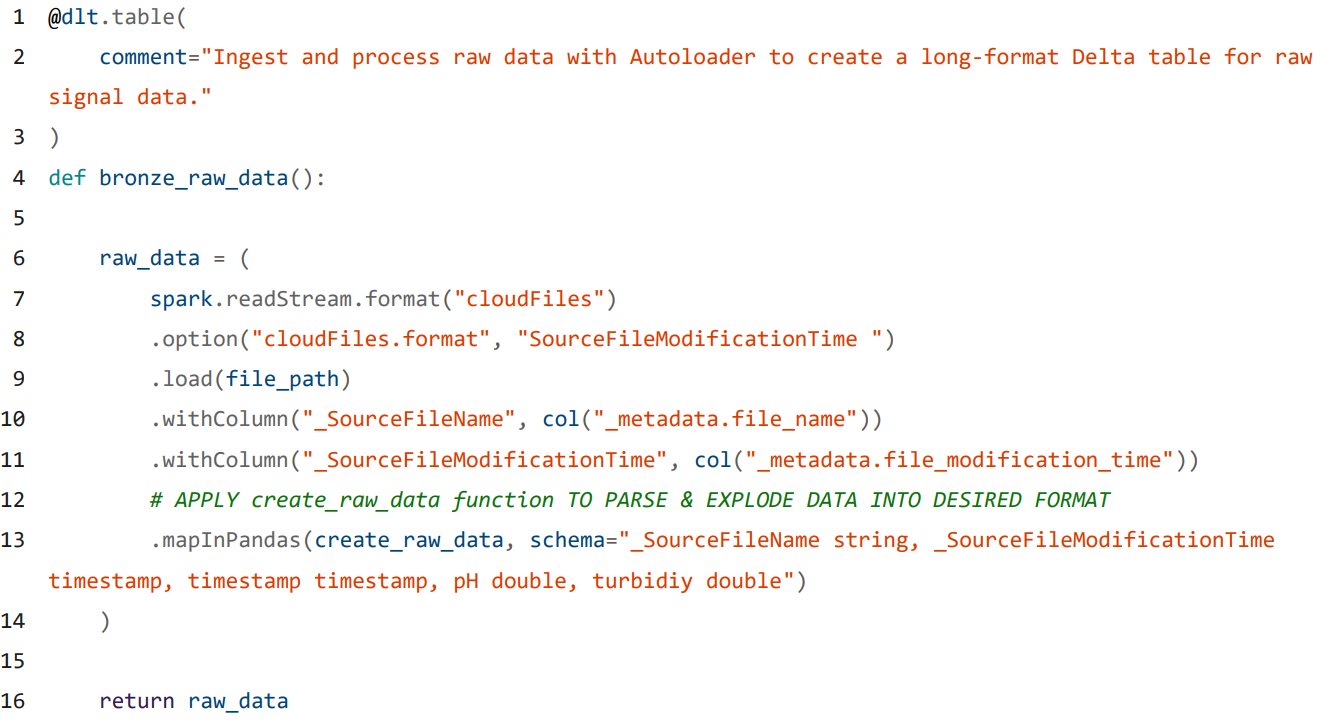

A snippet of the code used to create the raw data bronze table:
This sequence of functions demonstrates the power of combining Python-native transformations with the distributed capabilities of Spark. The thoughtful handling of challenge binary structures, ensures that even the most complex data formats or irregular text formats can be transformed into actionable insights.
By embedding these functions within the DLT pipeline, the solution achieves both scalability and maintainability, setting the stage for downstream analytics and machine learning applications.

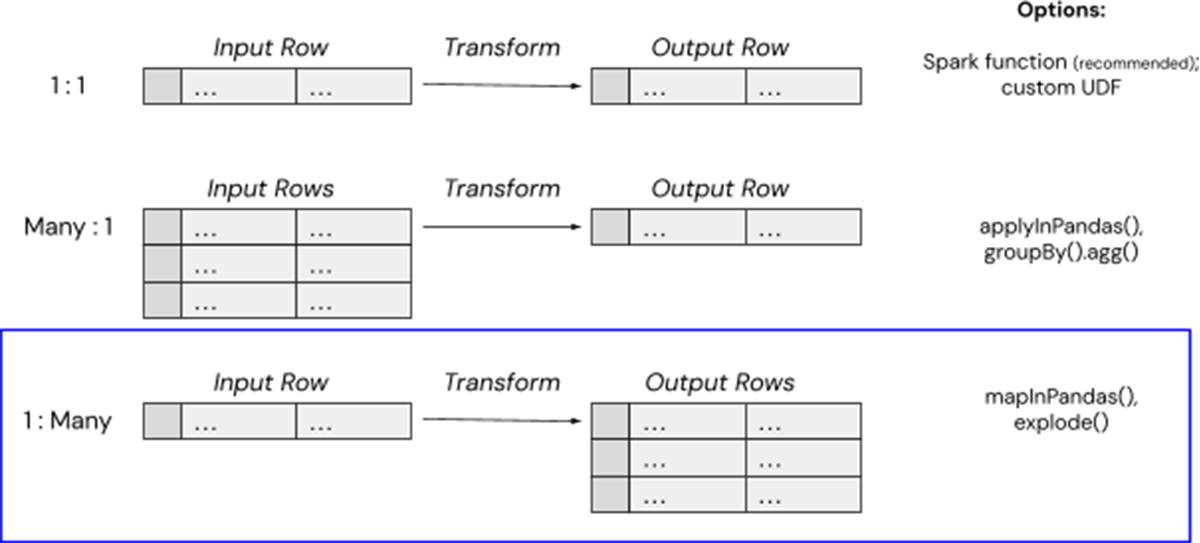

How does mapInPandas work?
There are a few simple methods for handling complex data transformations in Databricks, and in this case, we can use mapInPandas to map a single input row, in our case a whole text file (it can be a binary, tar, zip, ..) to multiple output rows,
our signal data. Introduced in Spark 3.0.0., mapInPandas allows us to process each record in Python, making it ideal for arbitrary data formats—especially binary. By receiving a Pandas DataFrame (which might contain just a binary payload per row), we can decode the byte stream, extract fields, and return multiple rows of structured sensor data. This process bypasses the complexity of text-based parsing and leverages Python’s native binary handling capabilities.
Applications Beyond Logger Data
This approach isn’t limited to environmental monitoring. The flexibility of DLT and mapInPandas can extend to other binary or proprietary formats:
- Scientific research: Processing experimental datasets with proprietary structures.
- Media analytics: Unpacking and analyzing compressed multimedia files.
- Healthcare: Decoding complex clinical data streams for real-time insights.
The combination of Python-native transformations and the scalability of Spark ensures adaptability across industries.
Redefining What’s Possible
By embracing binary data streams and combining the declarative power of Delta Live Tables with the flexibility of mapInPandas , we showed that no data format is too obscure. This workflow scales gracefully and remains maintainable, proving that even unconventional, binary-encoded measurements can be transformed into actionable insights with the right tools and approach.
